Orbea Wild LT H10 eMTB 2027 - Avinox M2S 800Wh, 170mm Fox 38

Orbea Wild LT H10 eMTB 2027 - Avinox M2S 800Wh, 170mm Fox 38

  • Description
  • Features
  • x

    • Drive System: Avinox
    • Motor: Avinox M2S
    • Battery: Avinox 800Wh
    • Brand: Orbea

An eMTB Enduro Weapon


Premium enduro performance at exceptional value. The Orbea Wild LT H10 is the mid-range alloy model of the Wild LT range. It combines the powerful Avinox M2S drive system with the same race-proven suspension platform derived from Orbea's World Cup-winning Rallon. The H10 is the mid-range alloy model, ready to tackle demanding trails with speed and control.

170mm of Fox Performance suspension with Shimano's latest XT drivetrain. The Orbea Wild LT H10 2027 is equipped with a 170mm Fox 38 Performance fork and a 170mm Fox Float X Performance Trunnion rear shock. Shimano's latest XT M8200 SGS Shadow Plus rear derailleur, paired with a Deore M6200 shifter and wide-range 10-51T cassette, delivers crisp, dependable 12-speed shifting, while powerful Shimano MT620 four-piston hydraulic disc brakes provide consistent stopping power on steep descents and technical terrain.

Avinox M2S power with an 800Wh battery. The Orbea Wild LT H10 2027 is powered by the Avinox M2S drive system, which delivers up to 120Nm of torque and up to 1,300W of peak power for exceptional climbing performance and instant response on technical trails. Orbea's custom RS tuning provides a natural ride feel while allowing assistance levels to be fine-tuned through the Avinox app. Paired with an integrated 800Wh battery, the Wild LT H10 delivers the range and power needed for longer days on the trail.

Contact us to order and for assistance with customisation preferences. See the Wild LT H-TEAM if you prefer the Fox 38 Factory suspension, or the Wild LT H20 if you want a more affordable Wild LT, with RockShox ZEB suspension.



E-Bike Technology


System Avinox
Motor Avinox M2S with RS Tune, 250W - 750W peak
RS override available via Avinox app - 1300W peak
Torque 130Nm - 150Nm
Battery Avinox 800Wh
Display Avinox DP100
Remote Avinox BC100
Charger Avinox Charger 4A
Opt: Charger 12A
Certification EN15194



Bike Specifications*

Frame Orbea Wild Hydro, Concentric Boost 12x148
Sizes S 40cm M 40.5cm, L 41cm, XL 42cm
Standard Colours Titan Grey - Noctiluca C View (Matt), Racing Green - White Cream (Gloss), Wild Orange -Royal Plum (Gloss)
Fork Fox 38 Float Performance 170, Grip, 3-Pos, 15x110
Travel 170mm
Rear Suspension Fox Float X Performance Trunnion 2-Pos Evol LV custom tune 205x65mm
Wheel Size 29"
Opt: 29/27.5" mullet
Wheels DT Swiss H 1900 Spline 30c
Tyres (F) Maxxis Assegai 2.50" 60TPI Fold 3C MaxxGrip Exo+ TR
Tyres (R) Maxxis Minion 2.40" 120x2TPI Fold 3C MaxxTerra DD TR
Rear Derailleur
Shimano XT M8200 SGS Shadow Plus
Cassette Shimano CS-M6200 10-51t 12-Speed
Shifter Shimano Deore M6200 I-Spec EV
Chain Shimano M6100
Cranks e*thirteen Helix Core e*spec
Brakes Shimano MT620 Hydraulic Disc
Handlebar OC Mountain Control MC20 Alu SL, Rise 35, Width 800
Stem OC Mountain Control MC20, 0º
Saddle Fizik Aidon 208x145mm manganese rail
Seatpost OC Mountain Control MC22, 31.6mm, Dropper
Bike Weight
Approx 22kg inc battery
Carry Capacity 135kg inc bike
Warranty - Drive System Avinox System: Two years
Warranty - Frame Orbea Frame: Lifetime
Lights - Front N.A.
Computer Mount OC Computer Mount CM-05, Garmin/Sigma
Mudguards N/A
Tools N/A



Select Color
Select Size
From $4,549.65

Original: $12,999.00

-65%
Orbea Wild LT H10 eMTB 2027 - Avinox M2S 800Wh, 170mm Fox 38

$12,999.00

$4,549.65

More Images

Orbea Wild LT H10 eMTB 2027 - Avinox M2S 800Wh, 170mm Fox 38 - Image 2

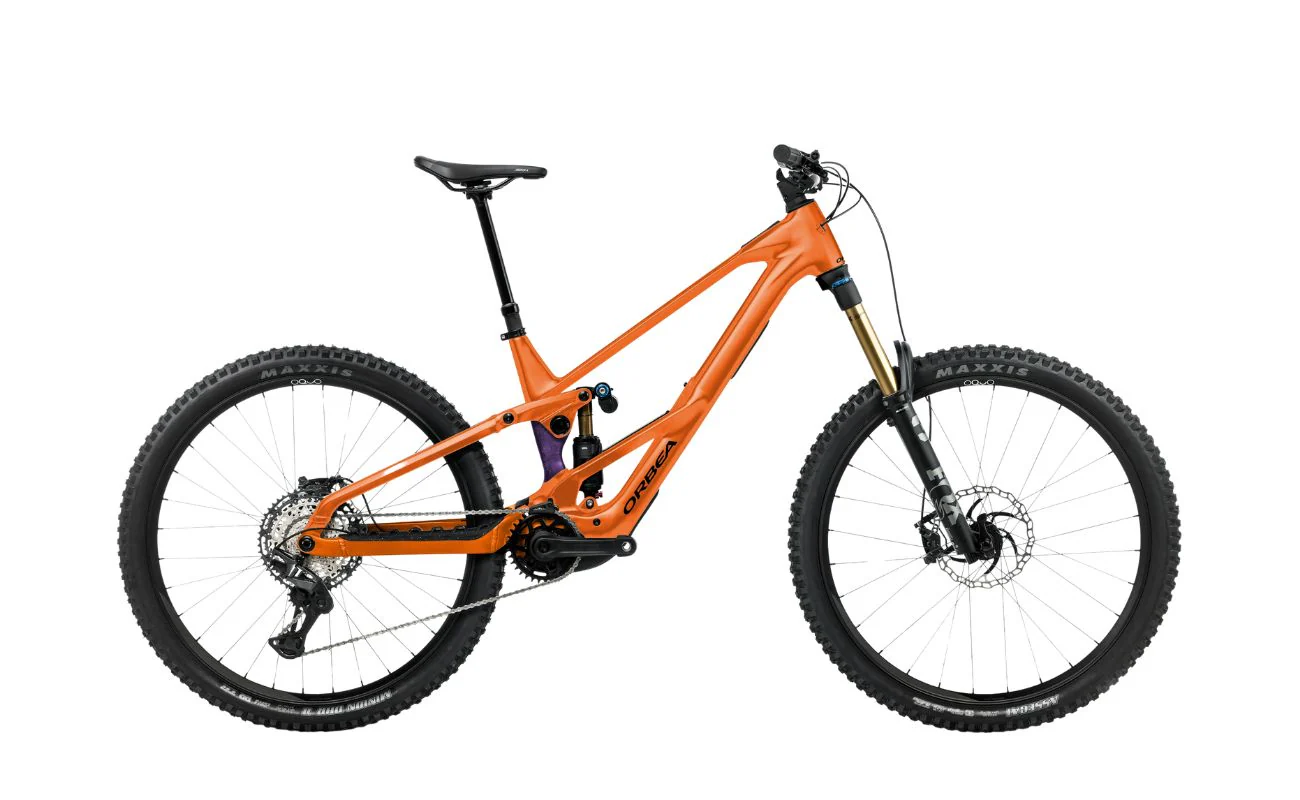

Orbea Wild LT H10 eMTB 2027 - Avinox M2S 800Wh, 170mm Fox 38 - Image 3
